| Size | 140x140x200cm |
| Power | 1∮AC 220V 50Hz 5A,3KW |
|
Test Speed |
10~30 cycles per minute (adjustable) |
Products Name:

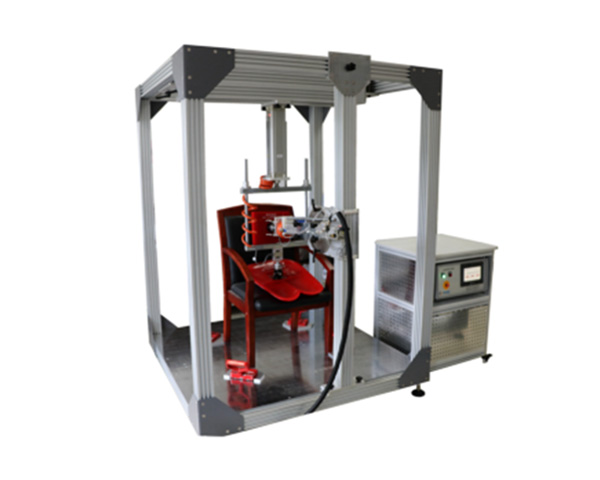

Office Chair Seat and Back Durability Tester
Application:
Office Chair Seat and Back Durability Tester is used for testing the strength and durability of office chair. Made of Aluminum material frame, PLC contral, easy operation; high precision force sensor for the load application.
|
Loading Sensor |
2500N (2nos) and 1000N (2nos) (or specified by customer) |
|
Load force solution |
1/10000 |
|
System test force accuracy |
±1%(static) ; ±5%(dynamic) |
|
Loading cycle |
0~999999 adjustable |
|
Control method |
Microcomputer automatism servo control |
|
Loading method |
Pneumatic linear actuator |
|
Loading power |
Motor |
|
Specimen test station |
1 |
|
Test independence |
Independent control by each work station |
|
Setting |
Computer software setting |
|
Data storage |
RAM and U disc |
|
Test report |
Make the report on computer as request |
|
Loading force adjustment |
Air pressure adjustment |
|
Motion control |
PLC control |
|
Backrest loading height |
Manual adjustment |
|
Air source |
6kgf/cm^2 or above（supplied by customer themselves） |
|
Accessories |
Seat loading pad 1 set; Back loading pad 1set; Stationary fixture 1 set. |
