| Type | Tape Edge Machine |
| Power | 1.16kw |
| Weight | 900kg |
| Dimensions | L2200mm*W1900mm*H1500mm |
| Voltage | 3phase 380v 50hz |
| Certification | CE |
| Application | Foam Industry, Sponge Industry, Furniture Industry |
| Supply Ability | 60 Sets Per Month |
Products Name:

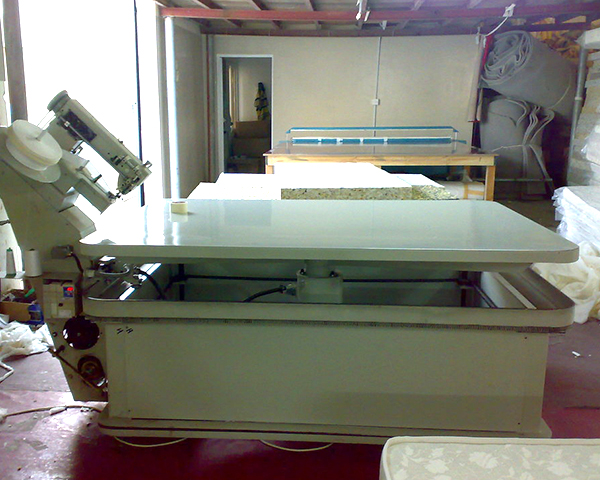

900Kg Mattress Tape Edge Machine
Features:
Adopts sewing head moving and working table fixing.
Mainly used for tape edge sewing for all kinds of soft mattresses, sleep bag, and tents.
|
Speed Control Type: |
Adopts Inverter Control |
|
Corner Speed: |
Auto Decelerate. |
|
Table Size: |
W1500mm*L2000mm |
|
Sewing Head Type: |
Choose Available : Chinese Head (Lock stitch) Seiko Head (Lock stitch) Singer Head (Chain stitch) |
|
Working Angle Of Sewing Head: |
35°~55° |
|
Sewing Mattress Height: |
30mm~300mm |
|
Sewing Head Speed: |
1100~3000rpm |
|
Table Moving Speed: |
5.5m~16m(Adjustable) |
|
Output: |
8~15pcs/hr |
|
Total Motor Power: |
1.16kw |
|
Machine N.W: |
900kg |
|
Floor Space: |
L2200mm*W1900mm*H1500mm |
